TRIMO
Complete building envelope solutions
What is Trimo?
Trimo is one of Europe’s leading companies offering complete building envelope solutions in the area of fire resistant and innovative, flexible, aesthetical, functional and energy-efficient façade, roof, rainscreen and backing wall solutions.
Since its formation in 1961, Trimo has established itself as a leader in the development of original and complete building envelope systems (facades and roofs) and modular space solutions.
Total Wall Solution
- Single component pre-engineered and prefabricated construction element
- Self-supporting column to column horizontal or floor to floor vertical installation
TRIMO PRODUCTS
Qbiss One
Trimoterm
Qbiss Screen
ArtMe
Benefits of Trimo solutions
ENVIRONMENTAL ASPECTS
BUILDING WITH TRIMO’S PRODUCTS PREVENTS UP TO 100% OF CONSTRUCTION WASTE
BUILDING WITH TRIMO’S PRODUCTS REDUCES CO2 FOOTPRINT UP TO 65%
TRIMO’S PRODUCTS MEET THE REQUIREMENTS FOR NEARLY ZERO-ENERGY BUILDING PERFORMANCE STANDARDS
TRIMO’S PRODUCTS ARE UP TO 99% RECYCLABLE AND MADE FROM UP TO 56% RECYCLED MATERIALS
USER’S ASPECTS
TRIMO’S PRODUCTS OFFER SOUND INSULATION OF UP TO 32 dB
THERMAL COMFORT
INVESTMENT ASPECTS
RENOVATING BUILDING ENVELOPE WITH TRIMO’S SOLUTIONS SAVES TIME WHEN DOCUMENT APPROVAL BY THE ADMINISTRATIVE AUTHORITY IS NOT NEEDED
Installation of Trimo’s envelope system solutions can be executed while the building still operates.
TRIMO’S PRODUCTS ENABLE QUICK RENOVATION AND CONSTRUCTION OF EXTENSIONS IN A UNIFIED UNIQUE ARCHITECTURAL APPEARANCE
TRIMO’S TOTAL ENVELOPE SYSTEM STRIVES FOR ENERGY SAVINGS OF UP TO 65% AND REDUCES OPERATING COSTS
TRIMO’S PRODUCTS OFFER ULTIMATE FIRE-SAFETY WITH FIRE RESISTANCE OF UP TO 4 HOURS
TRIMO’S CERTIFIED PRODUCTS ENSURE SAFETY WITH RC3 CLASS OF BURGLARY RESISTANCY
RENOVATING BUILDING ENVELOPE WITH TRIMO’S PRODUCTS SAVES THE COSTS OF WASTE DISPOSAL IN LANDFILLS UP TO 100%
SELF-SUPPORTING FULLY PREFABRICATED AND COMPATIBLE TRIMO’S PRODUCTS ENABLE QUICK AND EASY INSTALLATION OF THE TOTAL BUILDING ENVELOPE
TRIMO OFFERS UNIQUE ARCHITECTURE TAILORED TO CUSTOMER NEEDS
TRIMO BIM LIBRARY FOR PLANNING BUILDING ENVELOPES ENABLES FASTER PROJECT PLANNING BY UP TO 20%
THE TRIMO WARRANTY PERIOD MAY LAST LONGER THAN THE INVESTMENT DEBT PERIOD
Our Products
ArtMe
Unique façade design
ArtMe is a unique façade design from Trimo that allows a wide range of shapes, patterns and visual effects to be expressed on the façade for dramatic, individual and creative results. It enables many design possibilities – from pictures to inscriptions, logos, brands and bespoke creations.
With ArtMe you can extend your vision and design creativity onto a large façade canvas.
You can choose, design and impose almost any eye-catching graphical element to your building, tell your own story and stand out. You can choose from seven pre-designed patterns (puzzle, lines, bubbles, indent, circles, mesh and stripes), or you can opt for your own individual creation. You may wish to emulate something personal, corporate or something inspired by the building and its use.
MORE ABOUT ARTME:
Trimoterm
Fire Resistant Façade Panel
The Trimoterm fireproof façade system is a high-quality, versatile and environmentally friendly construction product for use where the highest demands of fire resistance, thermal insulation, water and airtightness are required. It offers the perfect combination of functionality and durability, whilst also delivering true architectural expression.
Trimoterm
- Class A1 non-combustible mineral wool insulation core
- Exceptional fire resistance up to class EI240
- Reaction to fire A2-s1, d0
- Advanced thermal and sound insulation
- The highest level of airtightness and watertightness
- Burglary resistance RC3 class
- Certified product
MORE ABOUT TRIMOTERM:
Trimoterm Brochure | Trimoterm Technical Specification | Warehouse Handbook | Data Centre Handbook | Renovation Handbook |Trimoterm Quick Product Finder | The BASE – Backing Wall For Vertical Installation | The BASE – Backing Wall For Horizontal Installation | Trimoterm Architectural Details | Trimoterm Video | Trimoterm References
Qbiss One
Prefabricated architectural facade wall
Qbiss One is a world-class engineered, prefabricated, A1 mineral wool insulated, metal facade system from Trimo that offers a complete wall solution, with a single construction element. It has rounded corners, unmatchable flatness and advanced technical characteristics.
A unique rounded corner provides a superior aesthetic appearance whilst also preventing any potential threat of corrosion. All other available products on the market use a “cut and fold” design that needs to be sealed manually and then touched-up with paint.
- Extensive range of interfaces and bespoke elements
- Integrated windows, doors and louvers systems
- Prefabricated corners and rounded corners without cuts, folds or welds
- 3D corner elements, curved elements, trapezoidal elements
- Extreme flatness
- Multiple joint possibilities
- Class A1 non-combustible mineral wool insulation core
- High-level insulation values as low as 0.15 W/m2K
- Fire resistance: up to class EI120 integrity and insulation
- Watertightness: class A (1200 Pa)
- Flexible coating warranties up to 30 years and lifetime expectancy up to 50 years
Application
External facade cladding and soffit applications for mixed-use developments, data centers, airports, residential, public, and healthcare buildings.
MORE ABOUT QBISS ONE:
Qbiss One Book | Qbiss One Brochure |Qbiss One Flyer | Qbiss One Architectural Details | Qbiss One Cutting List |Qbiss One YouTube Playlist

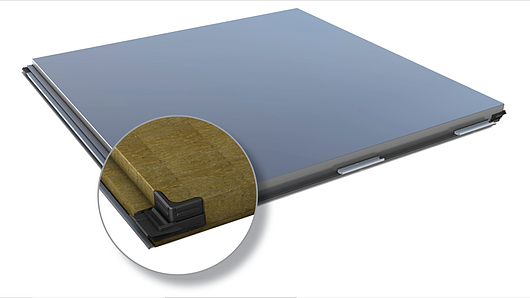

Qbiss Screen
Innovative metal rainscreen
Qbiss Screen brings a system-approach to ventilated façades. Prefabricated elements produced in a controlled environment are delivered to the building site with consistent quality. Suitable for both new-build and refurbishment projects, it comprises of an aluminium honeycomb or a mineral wool structural core, held between two metal skins. Qbiss Screen is equally applicable as exterior or interior wall, as well as interior ceiling and external soffit. Versatile and flexible, Qbiss Screen can be combined with Qbiss One to further enhance the building envelope. Qbiss Screen has also been rigorously tested to the appropriate fire and wind resistance standards and meeting A2-s1, d0 fire classification.
Qbiss Screen is distinguished by the unique rounded cornerof the element. This solution is the result of world-class engineering, the highest automated technology and patented manufacturing systems. Unique rounded corners provide a superior aesthetic appearance whilst also preventing any potential threat of corrosion. Compared to other ACP facade systems, Qbiss Screen is more compact and can withstand greater loads. Qbiss Screen is aesthetically beautiful, with outstanding flat surface and crisp details.
QBISS SCREEN TYPES
Qbiss Screen MW is sophisticated modular rainscreen, providing superior protection against weather while keeping the building safe from corrosion atmospheric pollutants. Light, 65mm thick and easy to install rainscreen elements with wounded corners, mineral wool core and unmatchable flatness are prefabricated in controlled environment and delivered to construction site, cut to size.
Qbiss Screen H, a 50 mm thick element is a composite made of two pre-painted galvanized steel sheets with joints and honeycomb core. The composition of materials gives elements visibly higher level of surface flatness, high load-bearing capacity, minimal thermal expansion, thermal deflection and resistance to humidity.
Qbiss Screen H+, a 50 mm thick element, comprises of an aluminium honeycomb core, inserted between two metal skins, with each element corner formed without cutting or folding. All joints are specially formed for fixing and sealing, with prefabricated lap joint on the side for self-weight fixing.
MORE ABOUT QBISS SCREEN:
